Product Configuration



This configuration tool allows you to adapt our product to your needs, using a variety of corresponding options. To configure your product, choose your desired options from the drop-down menus. Each selection will update the product specifications to reflect your choice.
Some options are not compatible (e.g. an integral occupancy sensor may not be available for a 347V input product), and as a result you won’t be able to select both options simultaneously. As with the previous example, if you selected 347V the occupancy option would not be visible. Conversely, if you selected an occupancy option, 347V would be similarly unavailable.
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.

Catalog Number: FLX150SWP-WRV-BZ
no found
Wattage
CCT
Mounting
Finish
Download Specs
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.
Product Specifications
Performance Specifications
Initial Lumen Output18,041 lm
Efficacy120 lm/W

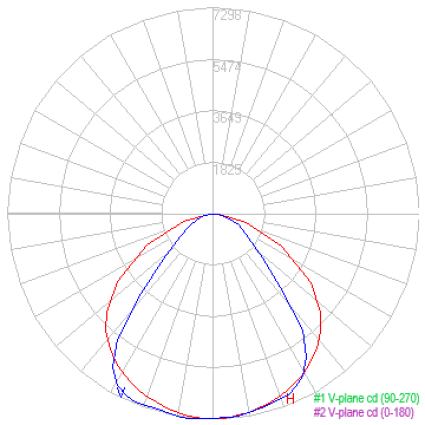

CBCP7,296 CD
NEMA Type7H x 7V
Beam Angle110 H x 80 V
Field Angle156 H x 144 V

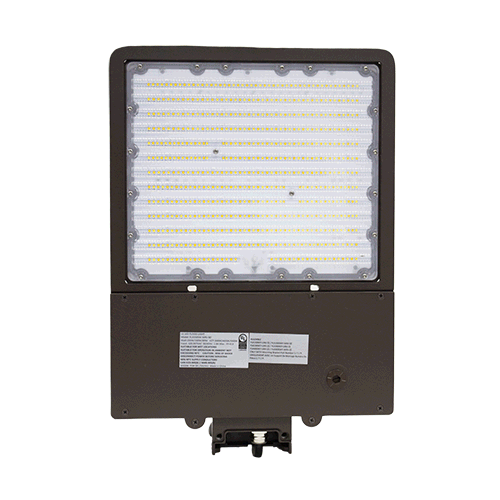

Luminaire TypeFlood Light
BUG RatingB4-U0-G2
Environmental Rating(s)IP65
UL ClassificationWet Location Listed
Ambient Operating Temp -40C to +40C
Certification StandardsUL Safety US-CA , DLC Premium
DLC NumberS-WQP6KH
CCN NumberIFAM7.E359675
Limited Product Warranty5 Year(s)
Light Source Specifications
Source TypeLED
ManufacturerLumileds®
Part NumberL128-XX70RB35000A1
CRI>70
Rf70
Rg96
L70>50,000 Hrs
L90>36,000 Hrs
Colour Temperature5000K
Chromaticityx=0.3286 y=0.3400
Duv0.005
Electrical Specifications
Driver ManufacturerMEAN WELL
Driver Part NumberHVG-150-42B
Input Voltage120-347Vac
Input Frequency50/60 hz
Fixture Draw150.79 W
Current Draw at 120Vac01.2580A
Current Draw at 347Vac0.462A
Inrush Current35A
Max On-Delay< 0.5 S
Power Factor at 347Vac> 0.90
THD at 347Vac(%)< 15%
Driver MTBF200,000 hrs
Max Operating Case Temperature90C
Surge Suppression4kV
Dimming0-10Vdc, (0% Min Light Level)
Dimming Current mA0.1
Over Temperature ProtectionShut down o-p voltage, recovers automatically after temperature goes down
Short Circuit ProtectionConstant current limiting, recovers automatically after fault condition is removed
Driver Certificationsc-RU-us Class 2, FCC Part 15 Class B, RoHS
Physical Specifications
Finish ColourBronze (RAL-8019)
Finish TypeTextured powder coat over chromate conversion coat
Wiring6’ 18-3 SJTW Cord Whip
MountingSquare Pole
Housing MaterialADC12 Aluminium
Lens MaterialPMMA
Lens TypeClear Optics
EPA0.357 ft2 Horizontal
EntriesStainless Steel Strain Relief
Shipping Specifications
OrderingCode(s)FLX150SW-WRV-BZ, FLX-PA-BZ
Box Quantity1
Box Dimensions (L-W-H)645 x 360 x 125 mm / x x inches
Box Weight6.94 kg

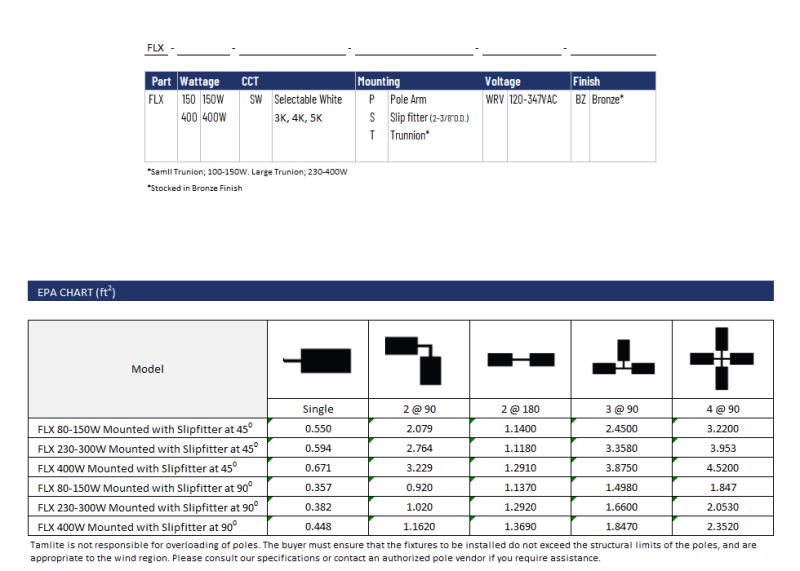

Series Architecture
Series Architecture img
Optional ExtrasAR-N7S, AR-N3PV-UN4
