Product Configuration



This configuration tool allows you to adapt our product to your needs, using a variety of corresponding options. To configure your product, choose your desired options from the drop-down menus. Each selection will update the product specifications to reflect your choice.
Some options are not compatible (e.g. an integral occupancy sensor may not be available for a 347V input product), and as a result you won’t be able to select both options simultaneously. As with the previous example, if you selected 347V the occupancy option would not be visible. Conversely, if you selected an occupancy option, 347V would be similarly unavailable.
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.

Catalog Number: MPF150SWY-WRV-BZ
no found
Wattage
CCT
Mounting
Finish
Download Specs
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.
Product Specifications
Performance Specifications
Initial Lumen Output17682lm
Efficacy117lm/W
Max Candela7758 CD
CBCP7758 CD
NEMA Type7H x 7V
Beam Angle107H / 81V
Luminaire TypeDirect - Type II Very Short
BUG RatingB4-U0-G3
Environmental Rating(s)IP65
UL ClassificationWet Location Listed
Ambient Operating Temp -40C to +40C
Certification StandardsUL Safety US-CA , DLC Premium
DLC NumberS-FR8149
CCN NumberIFAM7.E359675
Limited Product Warranty5 Year(s)
Light Source Specifications
Source TypeLED
ManufacturerLumileds®
Part NumberL128-XX70RB35000A1
CRI> 70
L70>90000 Hrs
Colour Temperature3000K, 4000K, 5000K
Chromaticityx=0.34718 y=0.35326
Duv0.005
Electrical Specifications
Driver ManufacturerTOWIN®
Driver Part NumberDF120W-40C2450B
Input Voltage120~277Vac
Input Frequency50-60Hz
Fixture Draw152.9W
Max On-Delay< 1 S
Auxiliary Control
Power Factor @120Vac>.90
Power Factor @277Vac>.90
THD @ 120Vac(%)<10%
THD @277Vac(%)<10%
Driver MTBF50,000hrs
Max Operating Case Temperature85C
Dimming0-10Vdc, (0% Min Light Level)
Over Temperature ProtectionDecreases output current, returning to normal after over temperature is removed.
Short Circuit ProtectionAuto Recovery. The output shall return to normal after the fault condition is removed.
Driver Certificationsc-RU-us Class 2, FCC Part 15 Class B, RoHS
Physical Specifications
Finish ColourBronze (RAL-8019)
Finish TypeTextured powder coat over chromate conversion coat
Wiring6’ 18-3 SJTW Cord Whip
MountingYoke Mount
Housing MaterialADC12 Aluminium
Lens MaterialPMMA
Lens TypeClear Optics
EntriesStainless Steel Strain Relief
Shipping Specifications
OrderingCode(s)MPF150SWY-WRV-BZ
Box Quantity1

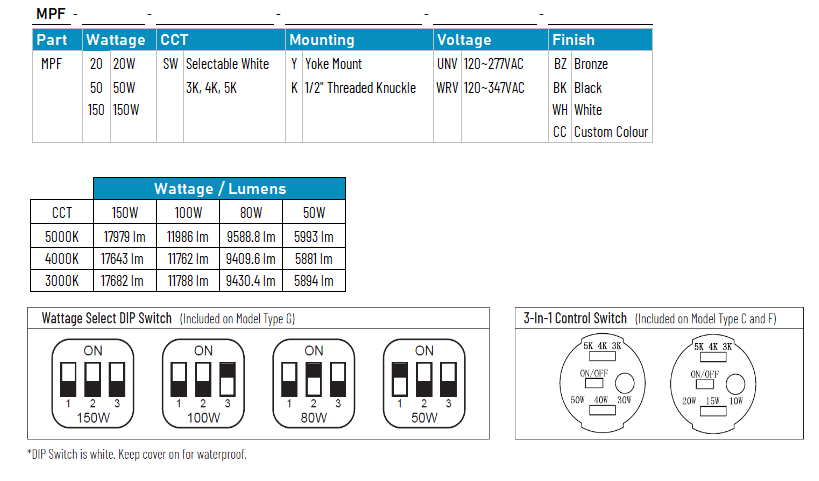

Series Architecture
Series Architecture img
