JBD6-5CS-OS
JBD SERIES
SKU JBD6-5CS-OS
icon
icon
icon
icon
icon

Quantity
Fixture Type (Optional)
Add to Basket
?
Add to basket to request a quote or save to a project folder
SKU JBD6-5CS-OS was added to basket
Proceed to Basket
Product Specifications
Download Specs
Performance Specifications
Initial Lumen Output:
947 LM (@4000K)
Efficacy:
70 lm/W
Luminaire Type:
Surface, Direct
UL Classification:
Wet Location Listed
Certification Standards:
cETLus
Limited Product Warranty:
5 Year(s)
Light Source Specifications
Source Type:
LED
CRI:
90
L70:
>36,000 Hrs
Colour Temperature:
2700K, 3000K, 3500K, 4000K or 5000K (F.A.C.T.)
Electrical Specifications
Input Voltage:
120Vac
Input Frequency:
50/60 Hz
Fixture Draw:
13.52 W
Dimming:
Not Available
Physical Specifications
Finish Colour:
White
Finish Type:
Painted Aluminium
Housing Material:
Aluminium
Lens Material:
Acrylic
Shipping Specifications
Box Quantity:
1
Box Dimensions (L-W-H):
182.118 X 182.118 X 60.96 mm / 7.17 X 7.17 X 2.4 in
Downloads

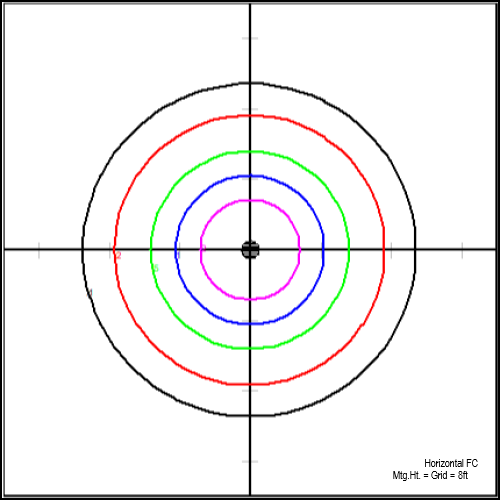

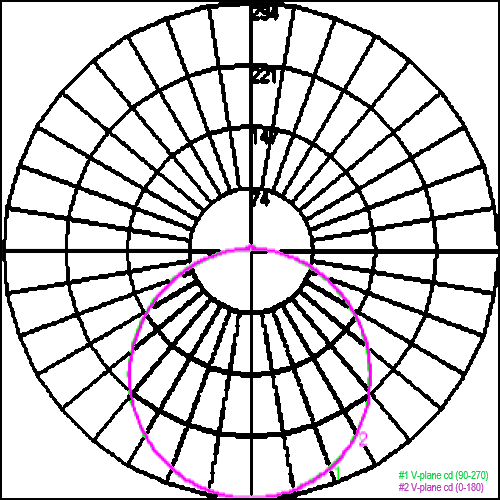

JBD6-CS-OS-IES-WEB (16.1 KB)
Download
Reviews / 0
Average Rating
5 stars 0
4 stars 0
3 stars 0
2 stars 0
1 star 0

There are no reviews yet.

Sorry, the file is not available. Please export it again.

Product Configuration



This configuration tool allows you to adapt our product to your needs, using a variety of corresponding options. To configure your product, choose your desired options from the drop-down menus. Each selection will update the product specifications to reflect your choice.
Some options are not compatible (e.g. an integral occupancy sensor may not be available for a 347V input product), and as a result you won’t be able to select both options simultaneously. As with the previous example, if you selected 347V the occupancy option would not be visible. Conversely, if you selected an occupancy option, 347V would be similarly unavailable.
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.
