AL-240WS-3CS-WRV-SO-BZ
AL Series
SKU AL-240WS-3CS-WRV-SO-BZ
icon
icon
icon
icon
icon
icon
icon

Quantity
Fixture Type (Optional)
Add to Basket
?
Add to basket to request a quote or save to a project folder
SKU AL-240WS-3CS-WRV-SO-BZ was added to basket
Proceed to Basket
Product Specifications
Download Specs
Performance Specifications
Initial Lumen Output:
33,549 lm
Efficacy:
152 lm/W

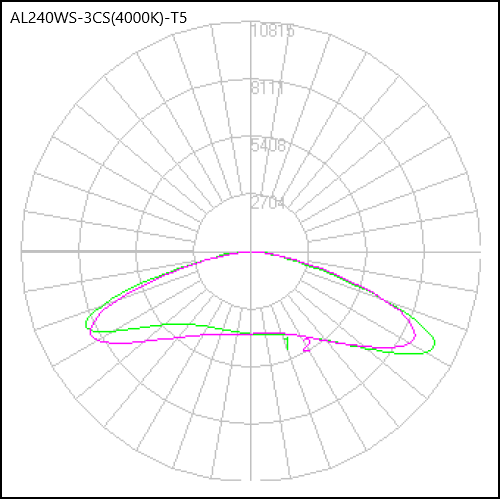

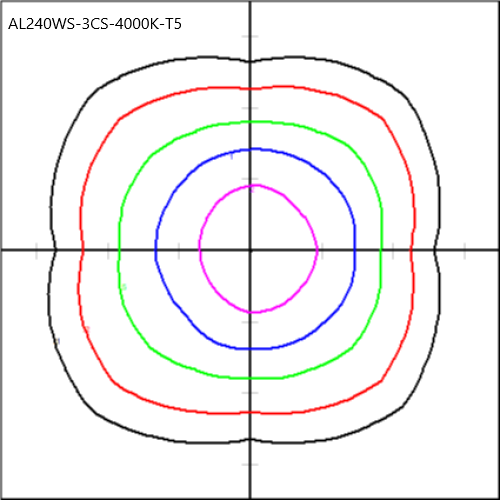

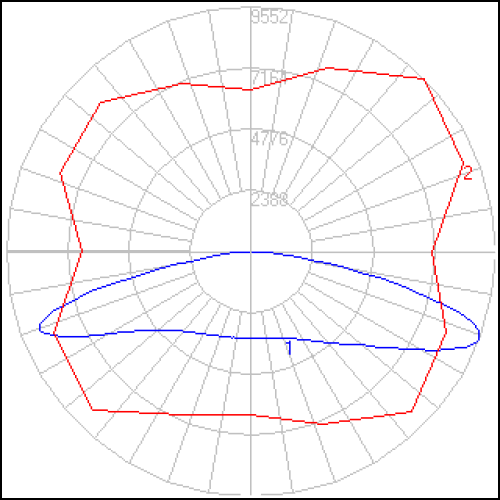

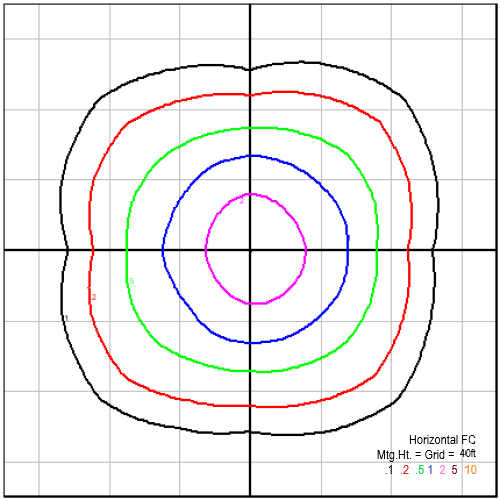

Beam Angle:
T5, T4, T3 optic panels provided
Luminaire Type:
Type V - Medium
BUG Rating:
B5-U0-G4 (at T5)
Environmental Rating(s):
Wet Location Listed
UL Classification:
IFAM
Certification Standards:
cULus
DLC Number:
Pending
Limited Product Warranty:
5 Year(s)
Light Source Specifications
Source Type:
LED
CRI:
> 80
Rf:
86
Rg:
95
L70:
>102,000 Hrs
L90:
>63,000 Hrs
Colour Temperature:
5000K
Electrical Specifications
Input Voltage:
120-347Vac
Input Frequency:
50/60 Hz
Fixture Draw:
237.90 W
Surge Suppression:
YES
Dimming:
YES
Physical Specifications
Weight:
14.3 lbs, NO MOUNTING
EPA:
1.23 SQFT @45d SINGLE FIXTURE
Shipping Specifications
Box Quantity:
1
Box Dimensions (L-W-H):
660 x 405 x 35 mm / 26 x 15.9 x 1.4 inches
Box Weight:
30.8 kg /14 lbs
