Product Configuration



This configuration tool allows you to adapt our product to your needs, using a variety of corresponding options. To configure your product, choose your desired options from the drop-down menus. Each selection will update the product specifications to reflect your choice.
Some options are not compatible (e.g. an integral occupancy sensor may not be available for a 347V input product), and as a result you won’t be able to select both options simultaneously. As with the previous example, if you selected 347V the occupancy option would not be visible. Conversely, if you selected an occupancy option, 347V would be similarly unavailable.
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.

Catalog Number: TLVP47530K-UN4
no found
CCT
Voltage
Download Specs
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.
Product Specifications
Performance Specifications
Initial Lumen Output8684lm
Efficacy120.50lm/W

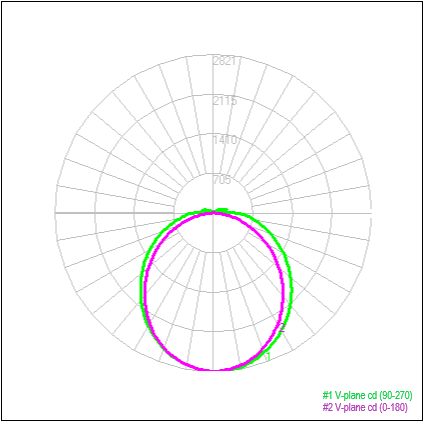

Max Candela2821cd (0H, 0V)
CBCP2821cd
Beam Angle120 deg
Field Angle170 deg
Luminaire TypeSemi-Direct
Spacing Criteria1.26(0-180), 1.30(90-270)
Environmental Rating(s)IP65
UL ClassificationWet Location Listed
Ambient Operating Temp -40C to +40C
Certification StandardsUL Safety US-CA , DLC
DLC NumberP4XCFE2N
CCN NumberIFAO7.E470484
Limited Product Warranty5 Year(s)
Light Source Specifications
Source TypeLED
Part NumberT28351-W29SC0D2FB3C0
CRI>80
Rf85
Rg96
L7072000 Hrs
Colour Temperature3000K
Chromaticityx=0.4314 y=0.4061
Duv0.0016
Electrical Specifications
Driver ManufacturerARC Smart Electronic Co., Ltd.
Input Voltage347Vac
Input Frequency50-60Hz
Fixture Draw75.55W
Current Draw@347Vac0.2213
Inrush Current
Max On-Delay< 1 S
Power Factor @347Vac>.90
THD @347Vac(%)<10%
Dimming0-10Vdc, (0% Min Light Level)
Over Temperature ProtectionAuto Recovery, The fixture shall shut down and return to operation when the temperature returns to normal.
Short Circuit ProtectionAuto Recovery. The output shall return to normal when the fault condition is removed.
Driver Certificationsc-RU-us Class 2, FCC Part 15 Class B, RoHS
Physical Specifications
Finish ColourGrey
Finish TypeDye injected polycarbonate
Wiring3 Conductor 18AWG
MountingSurface, Suspended
Housing MaterialBayer PC with Grey pigment powder
Lens MaterialBayer PC
Lens TypeOpal
Reflector MaterialAluminium with UV Painting
EntriesSupplied with wet location fitting. Other knockout points also on housing.
Shipping Specifications
OrderingCode(s)TLVP47530K-UN4
Box Quantity1
Box Dimensions (L-W-H)1300 x 175 x 102 mm
Box Weight3.6 kg
Carton Quantity6
Carton Dimensions (l-W-H)1320 x 325 x 375 mm
Carton Weight21.6
Series Architecture
Series Architecture img
Downloads
TCA_IES_TLVP (44.3 KB)
TCA_IES_TLVP (44.3 KB)
TCA_IES_TLVP (44.3 KB)
TCA_IES_TLVP (44.3 KB)
TCA_IES_TLVP (44.3 KB)
TCA_BIM_TLVP (11.0 MB)
TCA_BIM_TLVP (11.0 MB)
TCA_BIM_TLVP (11.0 MB)
TCA_BIM_TLVP (11.0 MB)
TCA_BIM_TLVP (11.0 MB)
TLVP Series_Installation Instructions (680.2 KB)
TLVP Series_Brochure (22.6 KB)
