Product Configuration



This configuration tool allows you to adapt our product to your needs, using a variety of corresponding options. To configure your product, choose your desired options from the drop-down menus. Each selection will update the product specifications to reflect your choice.
Some options are not compatible (e.g. an integral occupancy sensor may not be available for a 347V input product), and as a result you won’t be able to select both options simultaneously. As with the previous example, if you selected 347V the occupancy option would not be visible. Conversely, if you selected an occupancy option, 347V would be similarly unavailable.
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.

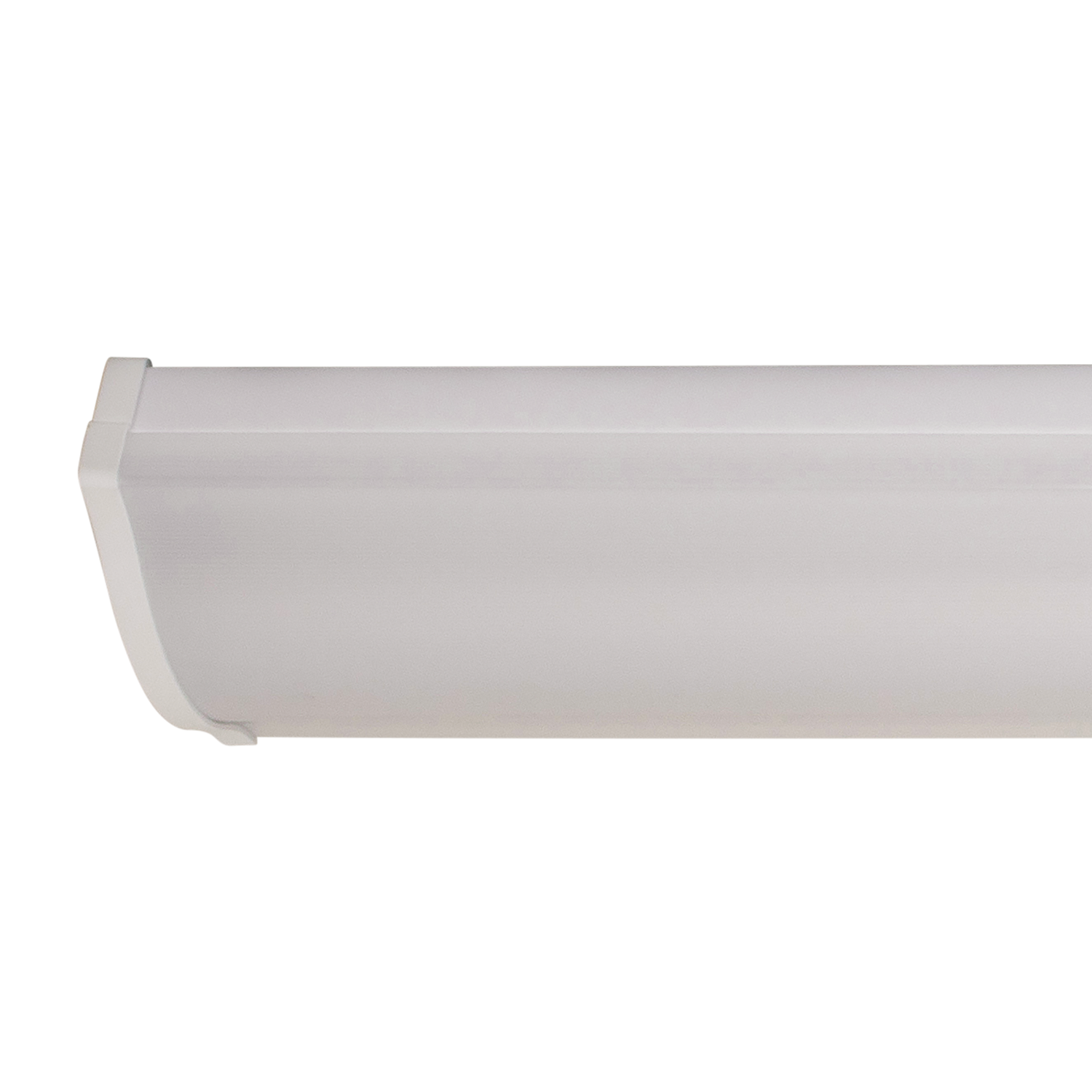

Catalog Number: TLCR45030K-347V
no found
Wattage
CCT
Mounting
Voltage
Finish
Download Specs
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.
Product Specifications
Performance Specifications
Initial Lumen Output4,718 lm
Efficacy102.27 lm/W
Luminaire TypeSemi-Direct
Environmental Rating(s)IP20
UL ClassificationDry Location Only
Ambient Operating Temp -20°C to +40°C
CCN NumberIFAM7.E359675
Limited Product Warranty5 Years
Light Source Specifications
Source TypeLED
CRI>80
L70> 50,000Hrs
Colour Temperature3120K
Chromaticityx=0.4299; y=0.4039
Duv0.0009
Electrical Specifications
Driver ManufacturerAntron
Input Voltage347VAC
Input Frequency60Hz
Fixture Draw046.13 W
Current Draw@347VAC0.9524
THD @ 120VAC(%)12.58%
Dimming1-10Vdc
Short Circuit ProtectionAuto Recovery. The output shall return to normal when the fault condition is removed.
Driver Certificationsc-RU-us Class 2, FCC Part 15 Class B, RoHS
Physical Specifications
Finish ColourWhite
Finish TypeTextured Powder Coat over Chromate Conversion Coat
WiringBack and End Knock outs with luminaire disconnect
MountingSurface, Suspended
Housing MaterialHeavy Guage Steel
Lens MaterialPMMA
Lens TypeFrosted Prismatic
Reflector MaterialPainted Steel
Shipping Specifications
OrderingCode(s)TLCR45040K-UN4
Box Quantity1
Box Dimensions (L-W-H)1210x213x73 mm
Carton Quantity6
Carton Dimensions (l-W-H)1230x385x235mm
