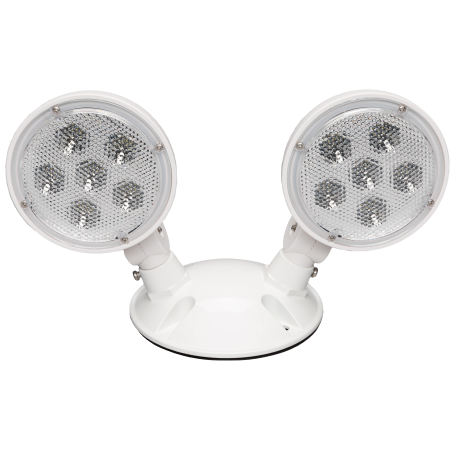

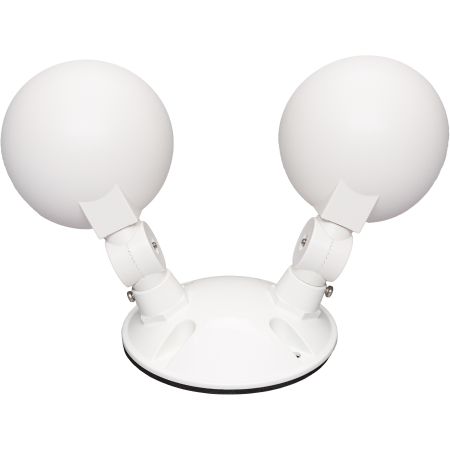

RHR2-MULTI-WP
RHR Series
SKU RHR2-MULTI-WP
icon
icon
icon

Quantity
Fixture Type (Optional)
Add to Basket
?
Add to basket to request a quote or save to a project folder
SKU RHR2-MULTI-WP was added to basket
Proceed to Basket
Product Specifications
Download Specs
Performance Specifications
Initial Lumen Output:
200
Efficacy:
100
Beam Angle:
27.4
Luminaire Type:
Remote head
Environmental Rating(s):
Wet location
Certification Standards:
UL924, C22.2 No. 141-15
Limited Product Warranty:
3 years for fixture
Light Source Specifications
Source Type:
LED
CRI:
> 80
L70:
>54,000 Hrs
Colour Temperature:
5700
Electrical Specifications
Input Voltage:
3-12VDC
Fixture Draw:
2W
Physical Specifications
Finish Colour:
White
Housing Material:
Aluminium / Polycarbonate
Lens Material:
Polycabonate
Reflector Material:
ABS
Weight:
0.38 kg
Shipping Specifications
Box Quantity:
1
Box Dimensions (L-W-H):
305 x 178 x 127 mm / 12 x 7 x 5 inches
Carton Quantity:
12
Carton Dimensions (l-W-H):
580 x 350 x 410 mm / 0.3 x 0 x 580 inches
Carton Weight:
6.95
Downloads
RHR Series_Installation Instructions (446.1 KB)
Download
RHR Installation Instructions (446.2 KB)
Download
Tamlite - RHR - Installation Instructions (446.2 KB)
Download
RHR Series_Brochure (446.1 KB)
Download
