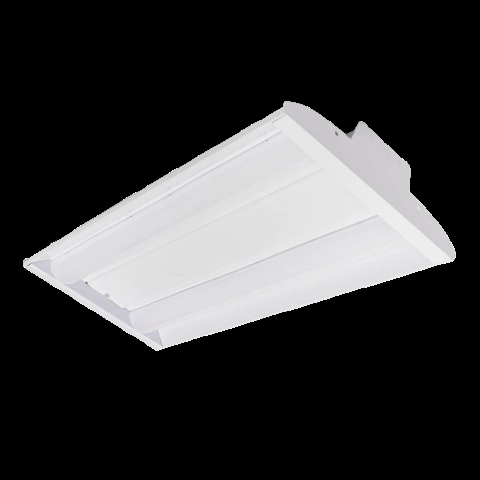

Catalog Number: HBX10040KPM-WRV
no found
Wattage
CCT
Mounting
Finish
Option
Download Specs
Not all configurations and options are stocked, and some may require minimum order quantities and lead times to produce. To inquire about availability, please call your local point of sale or contact us directly.
Product Specifications
Performance Specifications
Initial Lumen Output14533lm
Efficacy140lm/W
CBCP5024
Beam Angle120 deg
Field Angle170 deg
Luminaire TypeDirect
Spacing Criteria1.32 (0-180), 1.30(90-270)
Environmental Rating(s)IP20
UL ClassificationDry Location Listed
Ambient Operating Temp -20C to +40C
Certification StandardsUL Safety US-CA , DLC_5.1
DLC NumberPKAEQWHK
CCN NumberIFAM7.E359675
Limited Product Warranty5 Year(s)
Light Source Specifications
Source TypeLED
Part NumberArray Type
CRI>80
Rf82
Rg93
L9050,000 Hrs.
Colour Temperature4000K
Chromaticityx=0.3805 y=0.3776
Colour Tolerance5 SDCM
Duv0.0004
Electrical Specifications
Driver ManufacturerARC Smart Electronic Co., Ltd.
Driver Part NumberARC-D1-96I2000-MUV-D1-S
Input Voltage120~347Vac
Input Frequency50-60Hz
Fixture Draw103.8W
Current Draw at 120Vac0.8667
Current Draw at 277Vac0.3755
Current Draw at 347Vac0.2997
Inrush Current0.25A2S
Power Factor at 120Vac>.90
THD at 120Vac(%)<20%
Driver MTBF320,000hrs
Max Operating Case Temperature90C
Surge SuppressionLine to line 2kV, line to ground 4kV, IEC 61000-4-5
Dimming0-10Vdc, (0% Min Light Level)
Dimming Current mA0.45
Over Temperature ProtectionAuto recovery. The output recovers when the temperature returns to normal.
Short Circuit ProtectionAuto recovery. The output recovers when short is removed.
Driver Certificationsc-RU-us Class 2, FCC Part 15 Class B, RoHS
Physical Specifications
Finish ColourWhite
Finish TypePainted Steel
Wiring Rear Access Plate
MountingPendent Mounted, Kit Sold Separately
Housing MaterialSteel
Lens MaterialPolycarbonate
Lens TypeFrosted
Reflector MaterialSteel with UV Painting
EntriesRear and end entries
Shipping Specifications
OrderingCode(s)HBX10050K-WRV, HBX-PM
Box Quantity1
Box Dimensions (L-W-H)655 x 295 x 85 mm
Box Weight5.5 kg
Series Architecture
Series Architecture img
Optional ExtrasHBX100-WG, HBX-C10, HBX100-SLQ
